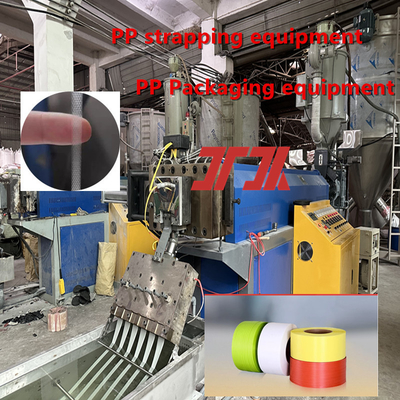

Equipamento de embalagem de plástico de PP Linha de produção de fita de embalagem de PP com largura de 5-19 mm

 PP plastic packaging tape equipment PP packaging tape production line with 5-19mm width

PP plastic packaging equipment PP packaging tape production line with 5-19mm width

Description of PP strapping machine:

PP strapping tape, also known as polypropylene strapping tape, is a strapping tape made of polypropylene brushed resin as the main raw material.

It has superior characteristics:

Good plasticity-----can be formed into various shapes and sizes as needed, width: 5-19mm, thickness: 0.3-1.2mm.

Strong breaking tensile force----has a high load-bearing capacity, suitable for various occasions that require packaging and fixing.

Bending resistance----will not easily break or damage even after multiple bending.

Low density----relatively light weight, easy to carry and use.

PP strapping tape is also very easy to use, so it is widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.

                                           EXTRUSION PARAMETERS TABLE

                                          (  PP strapping tape specifications)

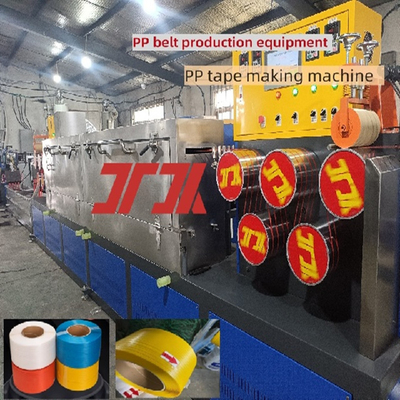

Tempering oven for strapping tape:

ADVANTAGES

1. Tempering purpose

Tempering is to eliminate the internal stress generated by PP strapping tape during stretching, improve the toughness and dimensional stability of strapping tape, and prevent the strapping tape from deformation or breakage during use.

2. Tempering steps

1. Heating treatment

• Choose the right temperature:

• Generally speaking, the tempering temperature of PP (polypropylene) strapping tape is between 120 - 160°C.

• If the temperature is too low, the internal stress cannot be effectively eliminated; if the temperature is too high, the strapping tape will be over-softened or even melted.

• Heating method:

• Common heating methods include hot air heating and infrared heating. Our machine uses hot air heating.

• Hot air heating heats the strapping tape by circulating hot air. The heating is uniform but the efficiency is relatively low.

• Infrared heating directly heats the surface of the strapping tape using infrared radiation. The heating speed is fast, but it is necessary to control the radiation intensity to avoid overheating of the surface.

2. Holding time

• Determine the holding time:

• The holding time depends on the thickness and material of the strapping tape. Generally speaking, the holding time of PET strapping tape is 3 - 5 seconds/mm thickness, and the holding time of PP strapping tape is 2 - 4 seconds/mm thickness.

• For example, for a 2mm thick PET strapping tape, the holding time should be between 6 - 10 seconds.

 ABOUT AFTER-SALES

We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP belt making machine.

2.Analysis of the cost of PP tape making machine.

3.Raw materials that can be used for PP tape making machine.

After-sales service:

1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.

2.Installation, commissioning and training of PP belt making machine.

3.Maintenance service of PP belt making machine.

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice

FAQ:

Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.

Q:What does the wrapping machine part of the PP strapping equipment look like?

A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
