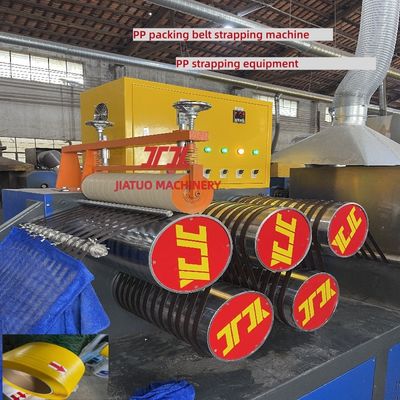

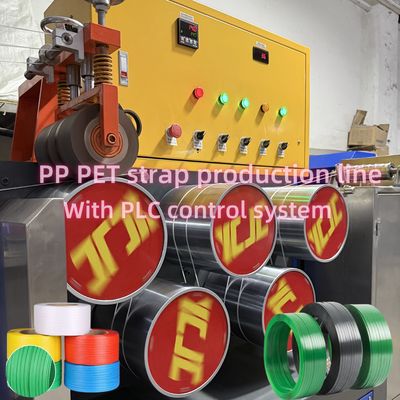

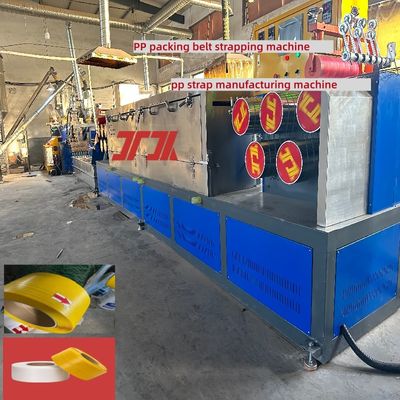

PP packing belt making machine 5-19mm high speed PP packing belt production line automatic winding machine
DESCRIOTION OF PP PACKING BELT MAKING MACHINE
pp packing belt making machine
pp packing belt making machine is a mechanical equipment used to produce polypropylene (PP) plastic belts, which are widely used in packaging, printing, textile, ceramics, printing, logistics, home appliances and other industries.
pp packing belt making machine is a high-end intelligent extrusion equipment that can produce PP belt: width: 5-19mm, thickness: 0.3-1.2mm
Raw materials-----pp packing belt making machine can produce plastic raw materials:
100%recycled materials or PP polypropylene new materials to produce strapping tape;
Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
Features :
- Product Name: pp packing belt making machine
- Simple Operation: YES
- First-class Technology: YES
- Speed: ≥260m/min
- Switches: Schneider
- Extruder Power: 37KW
- Paper core diameter:¢200*180mm
- Width:5-18mm
- Thickness 0.4-1.2mm
- Gram weight:1g/m(Negotiable)
Technical Parameters
| Property |
Value |
| Material |
PP Polypropylene New Material/Recycled Material |
|
Width
|
5-19mm |
|
Thickness
|
0.4-1.2mm |
|
Gram weight
|
Negotiable
|
|
Screw
|
110*3300mm |
|
Motor power
|
37kw (Siemens)
|
|
Host inverter
|
37kw (INVT)
|
|
Material barrel
|
150KG |
|
Replace the filter without cutting off the machine power supply
|
YES |
| Winding Method |
Manual/Automatic |
| Overall Dimensions |
L36*W2.0*H4.0M |
| Neat Winding |
Yes |
| Equipment Voltage |
Three-Phase 380V /50Hz (Customized) |
|
Total power
|
100KW(Power for operation:50-55KW) |
Line Pattern------

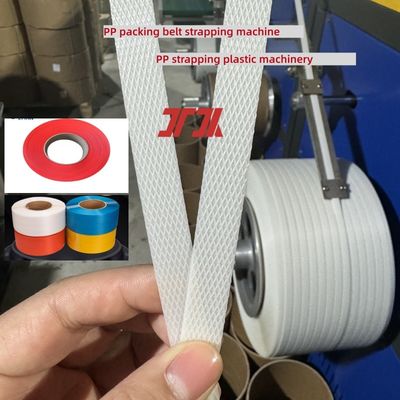

*****The surface of the PP strapping belt is embossed with a diamond pattern. The thickness of the lines can be customized based on the specific PP tape being produced.
*****The size of the pattern can be customized to meet customer requirements.
*****The high-quality SKD-11 embossing wheel can be engraved with various lines, providing greater friction and tightening during strapping.
ABOUT AFTER-SALES
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ:
Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:What is the transaction method of PP strapping production line?
EXW ,FOB,CIF
