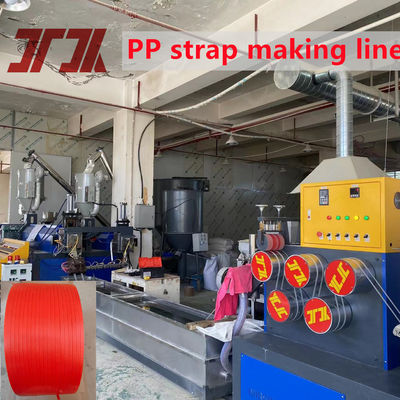

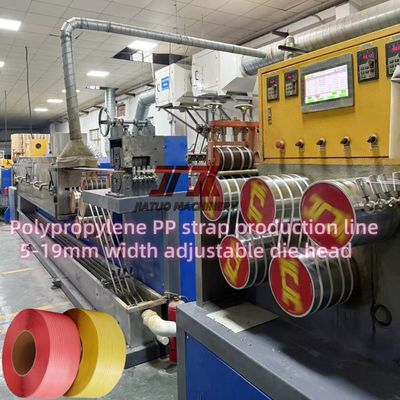

250-300m/min running speed PP Packing Strap Extrusion Production Line with automatic winder
Process Flow of PP Packing Strap Production Line
①Material→②Stirring raw material→③Pre crystallization drying→④Extruding→⑤Cooling→⑥stretch Oven pre-heating→⑦stretching→⑧printing(if need)→⑨Embossing→⑩shaping oven→⑪Cooling→⑫Winding(finished product)
Parameters of PP 1 to 2 production machine
| 1 |
Materials |
Polypropylene PP raw material pellets, recycled pellets. |
| 2 |
Product |
PP strap (1 mould for 2 straps) |
| 3 |
Capacity |
100-120kg/h |
| 4 |
Total install power |
80kw, (actual power consumption is 40-50%) |
| 5 |
Strap width |
5mm-19 mm |
| 6 |
Thickness |
0.4 mm-1.2 mm |
| 7 |
Manpower |
2person/shift |
| 8 |
Workshop required |
L (30m) ×W (2m) ×H (4m) |
| 9 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
| 10 |
Electric components |
Schneider |
| 11 |
Inverter |
INVT |
| 12 |
Switches |
Fotek |
| 13 |
Motor power |
GUGAO |

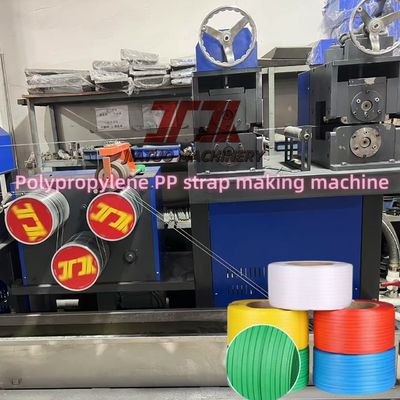

Features of PP Strap Making Machine
1. Specially designed screw with optimized compression ratio for PP, featuring a gradually changing diameter and deeper thread grooves in the melting section.
2. Hardened gearbox combined with a precisely adjustable die ensures stable production and smooth strap surface.
3. Stainless steel cooling trough treated with four thermal processes replaces conventional designs.
4. Larger haul-off rollers guarantee consistent product quality.
5. Advanced rolling technology overcomes traditional mill issues such as high gradient and bending deflection.
6. Laser-engraved embossing rollers deliver clear and uniform patterns.
7. Customized extrusion die and improved screen changer enable non-stop screen replacement without material leakage.

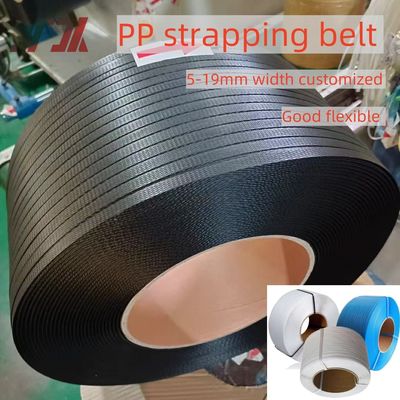

Samples of Final Products of PP Strap Band/Belt Extrusion Line/ PP Strap Band/Belt Extrusion Machine
Application of PP strapping
FAQ:
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 30 years, we also have our own PET straps factory.
Q: What is the procedure when you buy our machine?
A:Confirm the technology and machine configure -----confirm price----sign contract and make PI---send down payment - start to make machine---inform you before machine finish-you come our factory to check the machine---you accept the machine ----finish payment-exporting---send our technicians to your factory install the machine---answer your question all the using time and supply spare parts with cost only.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Company Profile:
Shenzhen Jiatuo Plastic Machinery Co., Ltd, specilizing in PP & PET Strap production and development for more than 20years.
Products consist of PET/PP Strap Making Machine, Rattan Making Machine, Handheld Strapping Machine, Plastic Coating Machine, high-precision Plastic Embossing Roller, PP & PET Strap Winder, Tensile Testing Machine, Strap Printing Machine, Plastic Extrusion Screen Changer, Extrusion Machine Parts, automatic suction machine, screw feeder, crusher, etc; Automatic wrapping machine, automatic packing machine, automatic packing machine for all bags and automatic packing machine; High grade, high-strength and environment-friendly PP machine, PP packing belt, pet plastic steel belt and other packaging materials.
