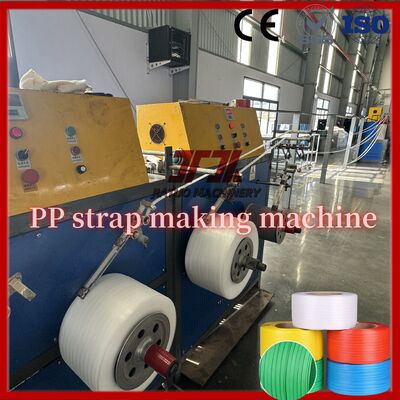

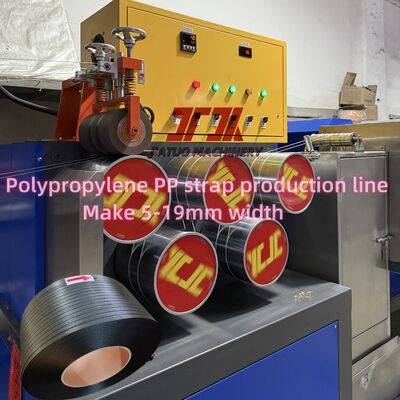

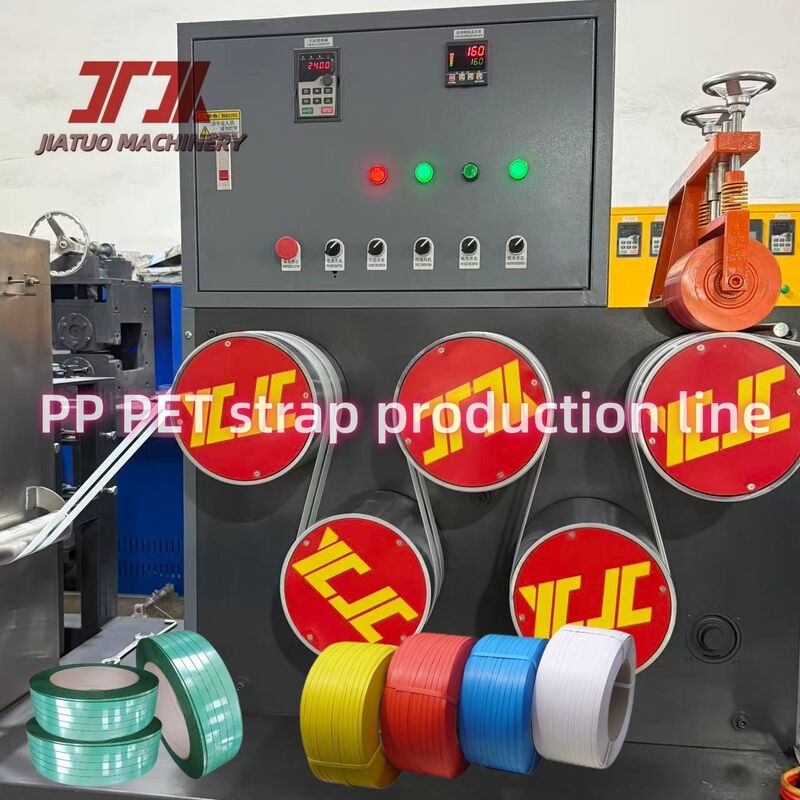

298m/min High- Running Speed PP Strap Making Machine With French Schneider Electric
PP strap production Machine General Introduction
* Raw Material: PP granules (new + recycled)
* Control System: Automatic PLC programmable control
* Winder: Servo motor and torque motor control systems available
* Machine Capacity: 100-600kg/H
Application of PP strapping
PP packing strip is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
Parameter of JIATUO PP strap making machine
|
Model
|
JTPP-90
|
JTPP-110
|
JTPP-125
|
|
Number of strap output
|
2
|
4
|
6
|
|
Productivity
|
100-120Kg/h
|
230-260Kg/h
|
350-380Kg/h
|
|
Motor power
|
22kw
|
37kw
|
55kw
|
|
Two-station Winder
|
200-300m/min,adjustable
|
|
Strap Size
|
Width
|
5-19mm
|
5-19mm
|
5-19mm
|
|
Thickness
|
0.3-1.2mm
|
0.3-1.2mm
|
0.3-1.2mm
|
|
Installed Capacity(about)
|
80kw
|
100kw
|
130kw
|
|
Running power
|
45KW
|
55KW
|
71KW
|
|
Line Dimension(L×W×H)
|
30×2×4m
|
35×3×4m
|
40×5×6m
|
Part of JIATUO PP belt making machine
Winding machine
We have severo motor and Torque Winding Machine for your choose.
Torque Winding Machine
Advantage:
- Smooth and Gentle Tension Control
Stable tension output with seamless transitions effectively minimizes belt breakage and deformation.
- Simple Structure, High Reliability
Simplified mechanical design reduces failure points, ensuring stable and reliable operation with low maintenance costs.
- Outstanding Cost-Effectiveness
Compared to servo systems, torque motor winders feature lower initial investment and moderate operational energy consumption, delivering significantly better overall value.
Severo motor winding machine
- Intelligent Operation and Adjustment
Equipped with an advanced control system supporting digital parameter setting and storage, it automatically matches optimal winding speed and tension curves for different packaging strap specifications, enabling “one-touch specification change” to significantly reduce manual debugging time and operational complexity.
- High Efficiency, Energy Savings, and Stable Operation
The servo system delivers rapid response and smooth start/stop performance, applying torque only when required—resulting in significant power savings compared to traditional motors. The machine operates with low noise and minimal vibration, ensuring enhanced durability and reliability.
FAQ
Q: Why you need to choose CHINA JIATUO PLASTIC MACHINERY Co.,Ltd?
A: JIATUO MACHINERY is one of the leading manufacturer in China and have nearly 30 years’ experience in this industry.
Q: What kind of products you are manufacturing?
A: We are specilized in PP PET strap making machine for nearly 30years experience. and we have setting our own PP PET strap factories at 2018.
Q: What is your delivery lead time of PP PET strap?
A: It usually take 10-20days, we will clearly advice in our quotation.
Q: What is your trade terms?
A: EXW, FPB,CIF as your require. payment terms is T/T L/C or others.
